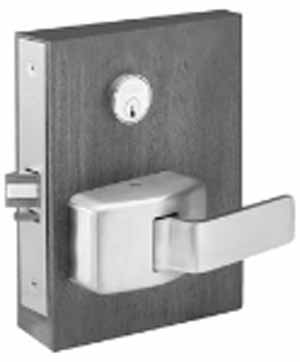

The Push/Pull design commonly known for its ease of operation is coupled with the strength and integrity of a mortise lock to provide greater versatility.
Ideally suited for:
·Hospitals
·Health Care Facilities
·Conference Rooms
·Handicapped Restrooms
·Laboratories
·Pharmaceutical Facilities
Features and Benefits:
·Push/Pull trim can be mounted with the paddle oriented in vertical, down or horizontal position. Down or horizontal paddle orientation is required for cylinder applications. Horizontal paddle orientation is required for turn lever applications.
·Stile Requirement-Minimum of 5 inches (125mm)
·Door Thickness 1 3/4 inches (44mm) to 2 inches (57mm) standard with adaptable spindle.
·Easy installation.
·Trim handing is field reversible.
·Thru-bolted for stability.
·Security Torx screws standard for trim.
·Lead lining is available as option.
·Anti-loosening adapter plates.
·Escutcheon is wrought brass, bronze, or stainless steel.
·Paddle is zinc die-cast (26D0 or cast brass, bronze, or stainless steel.
·Retrofits 7800 mortise locks with same functions (consult factory).
·Patent pending on adaptable spindle.
|
|
|
|
