Door knob / lever set
Back To:
Door knob / lever set Products
h series-arrow
Features:

Lock Chassis:
Cold rolled steel with zinc dichromate finish for corrosion resistance. Latch retractor is precision cast steel. Requires standard 2-1/8' (53.97 mm) bore through door.

Backset:
2-3/4' (69.85 mm) backset standard, 3-3/4' (95.25 mm) and 5' (127 mm) available.

Door Thickness:
1-3/4' (44.45 mm) to 2' (50.80 mm)

Latch:
Brass with 1/2' (12.7 mm) throw. 3/4' (19.05 mm) throw deadlocking firelatch available for pairs of doors. Latch housing is steel, zinc dichromate finish for corrosion resistance. 1' (25.4mm) bore in edge of door required.


Latch Front:
Brass, bronze or stainless steel, 2-1/4' (57.15 mm) x 1-1/8' (28.57 mm), beveled 1/8' (3.17 mm) in 2' (50.8 mm)

Strike:
Brass, bronze or stainless steel. ANSI A115.2, 4-7/8' (123.82 mm) x 1-1/4' (31.75 mm) curved lip standard. Optional 2-3/4' (69.85 mm) x 1-1/8' (28.57 mm) available. All strikes have 1-1/4' (31.75 mm) lip to center dimension.
Box strike available.

Handing: Reversible.

Cylinder, Standard:
Solid brass, 6 pin cylinder with Arrow “A” keyway. Can be masterkeyed, grandmaster keyed and construction masterkeyed. Conventional cylinders also available in a variety of competitive manufacturer's keyways. Supplied with two 6 pin nickel silver keys.

Cylinder Options:
Interchangeable core-lockset prepared for use with 6 or 7 pin interchangeable core. Supplied less core, but packed with 6 and 7 pin tailpieces. Will accept Best™ and Falcon™ type cores. Suffix “IC” to design. High Security-For cylinders meeting UL437 for pick and drill resistance.

Finish:
US3, US4, US10, US10B, US26, US26D,
US32, US32D.

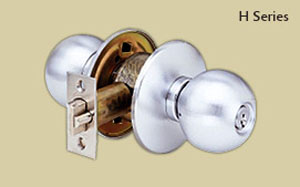

Door knob / lever set - h series-arrow
